The float level transmitter has the advantages of simple structure,convenient debugging, good reliability and high precision. It is widely used in continuous measurement of liquid level (interface) of high pressure, viscous, dirty, corrosive and other medium. It can support 0~5VDC/0~10VDC or 4~20mA standard signal output, the transmitter adopts 24VDC twowire type, the working is stable and reliable, no need to adjust.
It can be used in open, airtight containers or underground pools, and can be displayed on site, or can be displayed and controlled in the control room with instruments. It can measure conductive and non-conductive media, and can overcome the influence of false liquid level caused by liquid foam. It is widely used in oil refining, chemical industry, paper making, food, and sewage treatment industries.
Measuring Principle
The floating ball liquid level transmitter uses the magnet in the floating ball to change with the liquid level to change the voltage divider circuit composed of the resistance in the connecting rod and the reed switch. The voltage division signal is converted into a 4-20mA standard signal through the converter. Display the actual position of the liquid through the display instrument, so as to achieve long-distance detection and control of the liquid level.

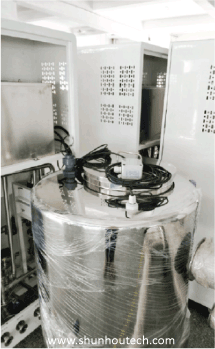

Application illustration

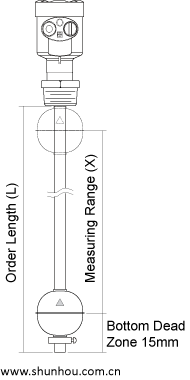

Order Length (L)=Measuring Range(X) + Float Length + End Length(15mm)=X+52+15=67+X(mm)
Application Features
- The internal sensing element is designed in the form of imported modules, with high reliability and strong antiinterference ability;
- High sensitivity packaged reed switch, high sensitivity and long working life;
- The circuit design adopts high-performance integrated circuits, which are stable and reliable with zero-point selfstabilizing function, and are not affected by temperature and pressure changes;
- The output mode is optional (4 ~ 20)mA, (20 ~ 4)mA, 0-5V, 0-10V, Hart interface communication (optional).
Application
It is suitable for liquid level, oil level, oil-water interface of various towers, tanks, tanks,
spherical containers or boilers in the production of metallurgy, petroleum, chemical industry, shipbuilding, environmental protection, electric power, papermaking, pharmaceuticals, printing and dyeing, food, municipal and other industries. , Continuous measurement and control of the foam interface.
Ordering code
| LE- | □ | □ | □ | □ | □□ | □ | □□ | □□□□ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ |
| ①Ordering model | LE：Float Level Transmitter | |
| ②Explosion proof options | P: Non-Ex D: Explosion proof(ExdIICT6) I: Intrinsically safe(ExiaIICT6) ID: Intrinsically safe+Explosion proof(Ex d iaIICT6) | |
| ③Junction box | A: Hirschmann B: Aluminum alloy (gray) C: PP(big circle) D: PP(small circle) E: Aluminum alloy (thermocouple head) F: Aluminum alloy (white) G: ABS(square box) H: Aluminum alloy (blue and white) M: Aluminum alloy (2088) T: Aluminum alloy(3351) S: Stainless steel box W: No junction box | |
| ④Precision | A: 6.35mm B: 12.7mm A and B are imported reed modules C: 5mm D: 10mm C and D are imported reed switches | |
| ⑤Output/Display | 1: 4~20mA DC two-wire system / no display 2: 4~20mA DC two-wire system / with LCD display 3: 4~20mA DC two-wire system / with LED display 4: 4~20mA DC 2-wire system / no display / HAR T 5: 4~20mA DC two-wire system/with LCD display/HAR T 6: 4~20mA DC two-wire system / no display / FF bus (Profibus P A) S: special output | |
| ⑥Process connection | Flange/Thread Size A：DN10(3/8″) B：DN15(1/2″) C：DN20(3/4″) D：DN25(1″) E：DN40(1-1/2″) F：DN50(2″) G：DN65(2-1/2″) H：DN80(3″) I：DN100(4″) J：DN125(5″) K：DN150(6″) S：Special specification | Flange/Thread Specification G：G(PF) R：R(PT) W：PN1.0 X：PN1.6 Y：PN2.5 Z：PN4.0 L：5kg/cm M：10kg/cm N：NPT O：150LBS P：300LBS S：Special specification |
| ⑦Rod diameter | 4: Φ14 SUS304 6: Φ14 SUS316L 7: Φ18 SUS304 8: Φ18 SUS316L P: Φ20 PP(Polypropylene) F: Φ20 PFA V: Φ20 PVDF S: Special rod diameter/material | |
| ⑧Float model | S2：SUS304/316L P3：PP S3：SUS304/316L F3：PVDF material S4：SUS304/316L SS：Special specification S5：SUS304/316L See float specification table for details | |
| ⑨Insertion length （unit mm) | 0500：500mm | |
The total length of the product is affected by the process, and the error is ±5mm. The product characteristics, specifications and dimensions can be modified at any time if necessary without prior notice!
