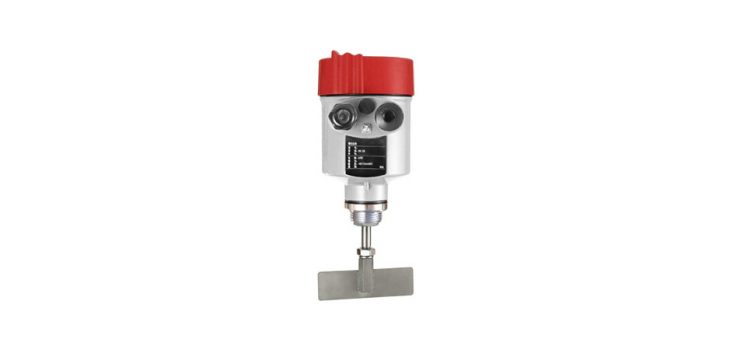

Rotary Paddle Level Switch has a simple structure, is widely used, and is easy to maintain. It is an ideal material level control instrument, suitable for controlling material levels in industrial production processes. When the material level reaches the high or low limit, the contact outputs an alarm or control signal. It is easy to install and can be installed in any shape of warehouse, hopper, tank, and other containers.

Measuring principle
The anti rotation material level switch uses a clutch to connect the motor with the transmission shaft. When the motor is not in contact with the material, it maintains normal operation. When the blade contacts the material and causes resistance, the blade stops rotating. The limit switch is activated, and the output contact signal reflects the material level height. At the same time, the motor power is turned off. The motor stops rotating. When the stacking height of the measured material decreases and no longer hinders the blade rotation, the motor restarts, The contact signal returns to its initial state.

Illustration

① Upper mounted high level flange installation
② Side mounted low level flange installation
③ Side mounted high level flange installation
④ Side mounted low threaded installation

Application characteristics
1 The shell has an action indicator light for easy viewing of the action status, which can be remotely viewed;
2 High temperature type (400 degrees) and heavy material resistant type can be used in high temperature and block material environments;
3 Various forms of blades can be suitable for different environments and materials with various specific gravity;
4 The mechanical structure is easy to detect and does not require adjustment after installation;
5 Torque adjustment can be carried out for different media;
6 The motor and transmission mechanism are equipped with a clutch Even if the blades are subjected to heavy loads, it can protect the safety of the motor;
7 Not affected by environmental factors and causing malfunctions, can maintain stable measurement for a long time;
8 The unique oil seal design (using multiple seals) can completely prevent the invasion of dust.
9 Adopting explosion-proof form, suitable for explosion-proof EXdIICT3-T6/DIPA20TaT3-T6 level occasions;

Typical application objects
Powder: feed, flour, leather material, grinding material, wood, limestone, calcium powder, sawdust, soil, etc;
Blocks: rubber, stones, grains, sand, pills, coal, fertilizers, synthetic resins, mixed sand materials, metals, salt, water deposits, plastic particles, etc.
