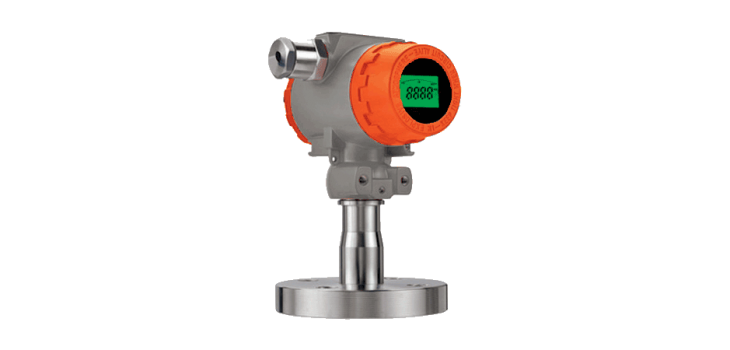

The P200T series pressure transmitter converts the signals collected by the sensor into various electrical signals such as 4-20mA through an intelligent pressure transmission module. This pressure transmitter utilizes digital compensation technology to greatly improve measurement accuracy and reduce the impact of temperature drift. At the same time, the product has a safe and reliable explosion-proof structure design, which can be used to measure the pressure of liquids, gases, or vapors, and achieve remote setting and monitoring through communication equipment.

Applicable environment
■ Oil and gas transportation
■ Chemical process control
■ Steel smelting
■ Process control of power plant boilers
■ Non ferrous metal smelting
■ Sewage treatment

Technical Parameter
Functional parameters

Accuracy	0 .075%, 0.1%
Effect of ambient temperature	≤±0.1%F.S/10℃
Long term stability	≤±0.2%F.S./URL(1 year)
Effect of installation	Can be rectified by re-zero setting
Static pressure effect	≤±0.1%/range/1MPa
Response time	0.25s
Effect of power supply	≤ ±0.005%/URL/V
Effect of vibration	≤ ±0.25%/URL/g

Applicable working conditions

Working temperature	(-40~105)℃
Ambient/storage temperature	(-40~85)℃
Application/storage humidity	≤ 95%RH

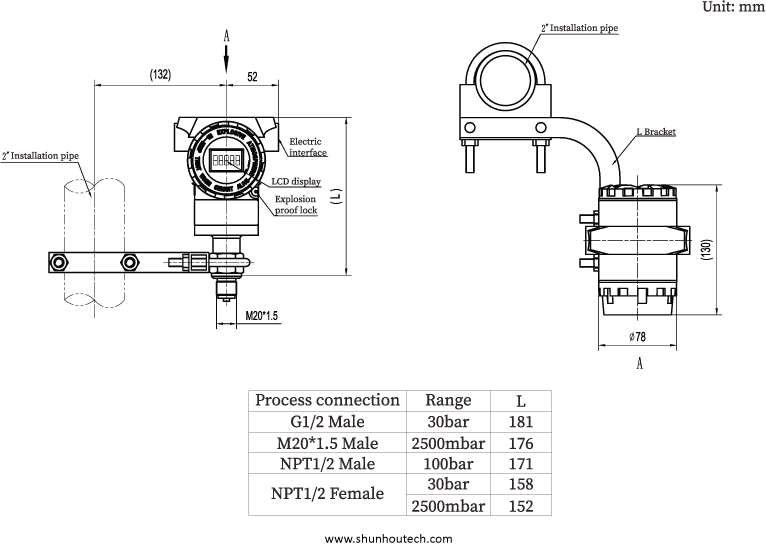

Pipe installation overal dimension

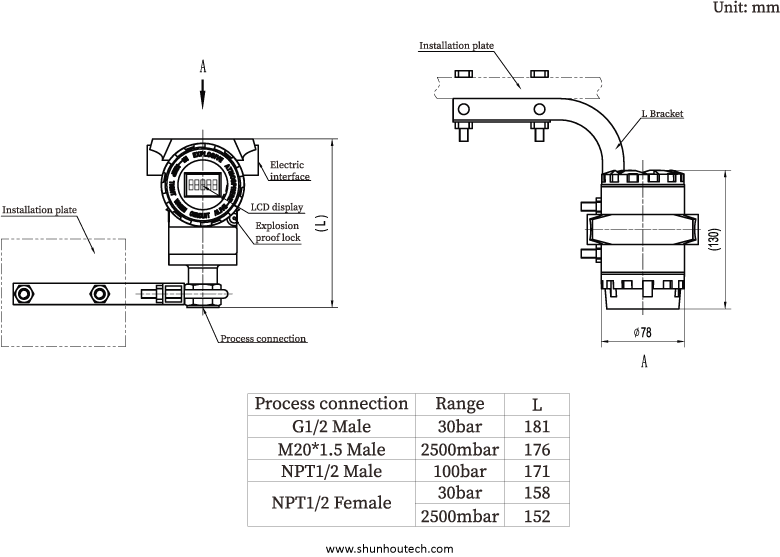

Plate installation overal dimension

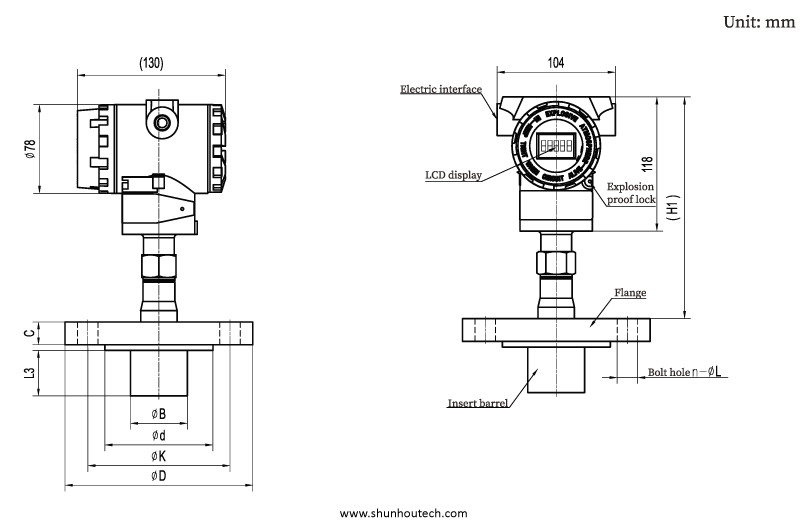

The model without capillary overal dimension

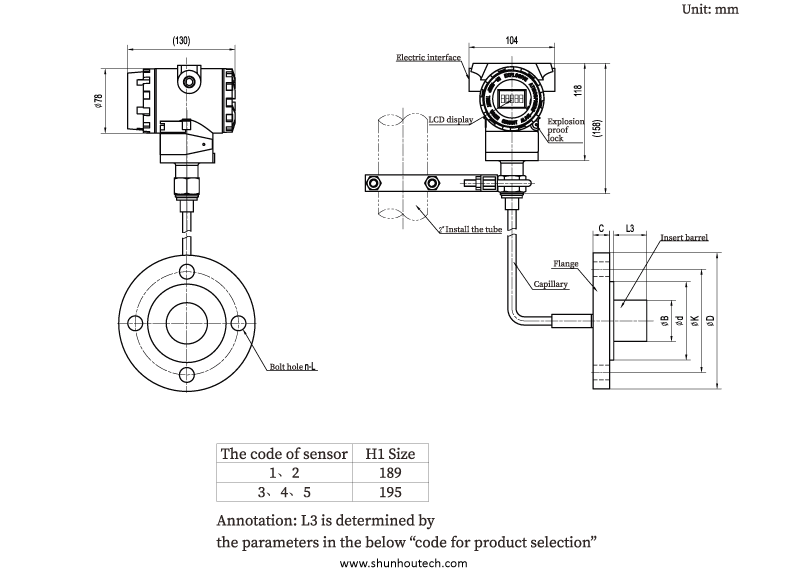

The model with capillary overal dimension
